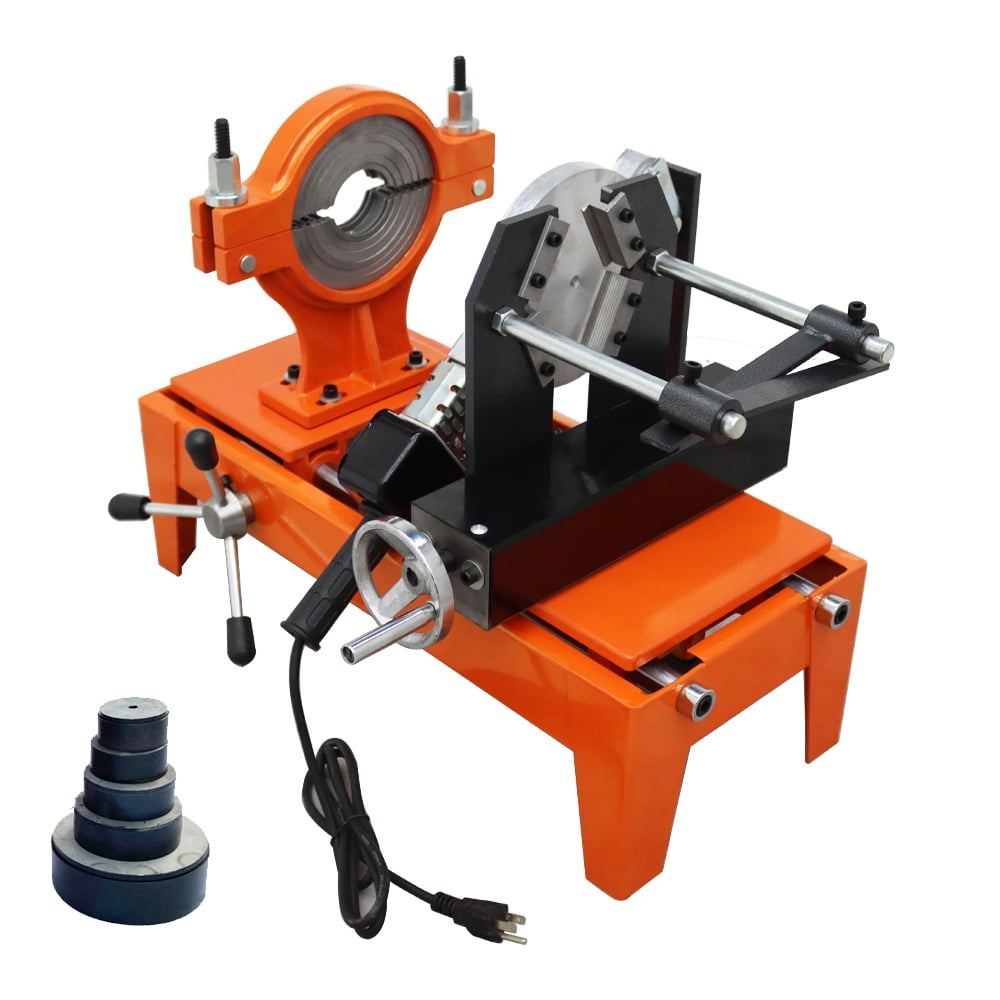

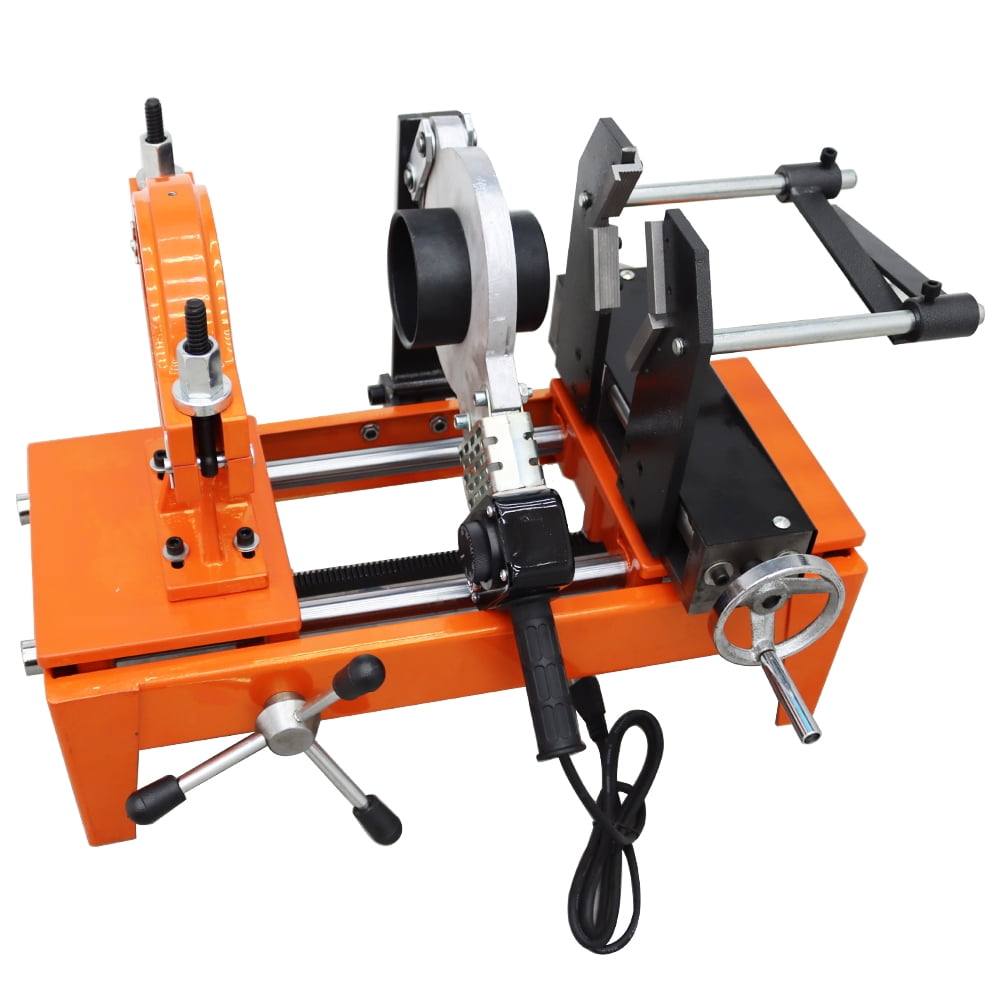

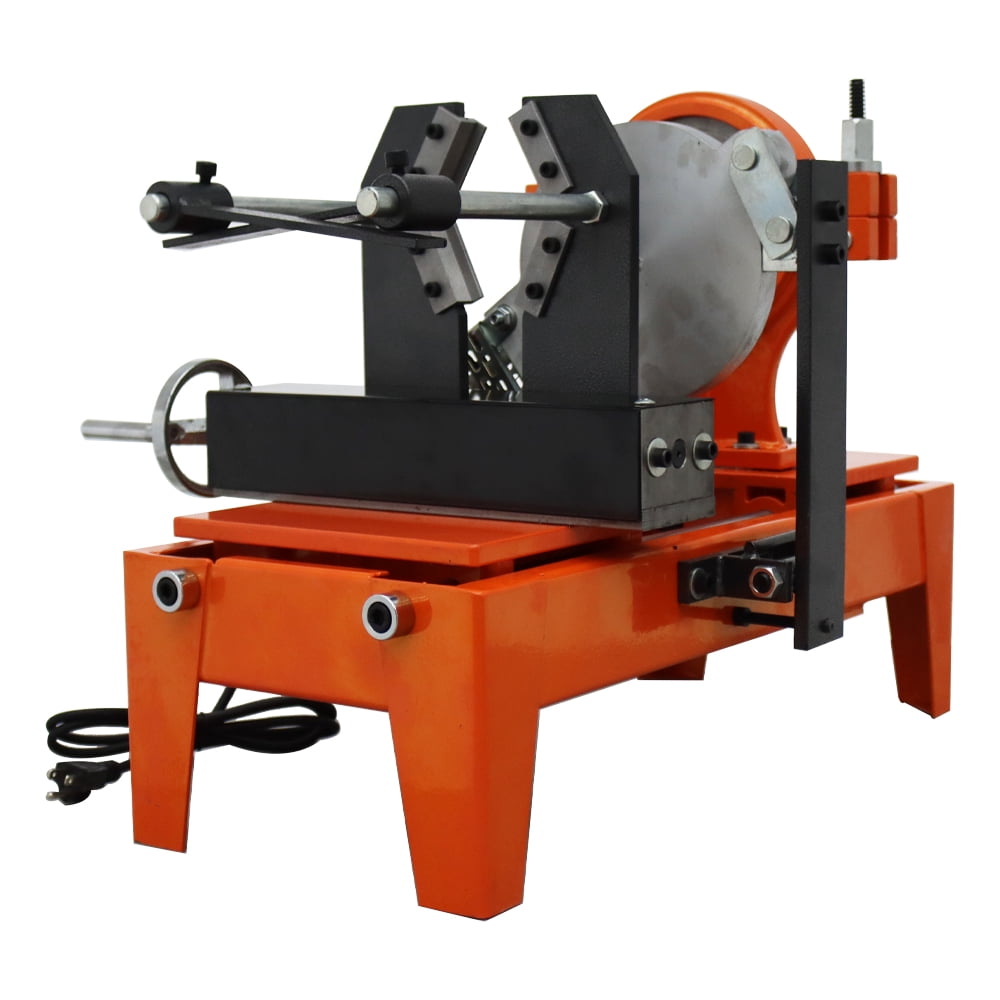

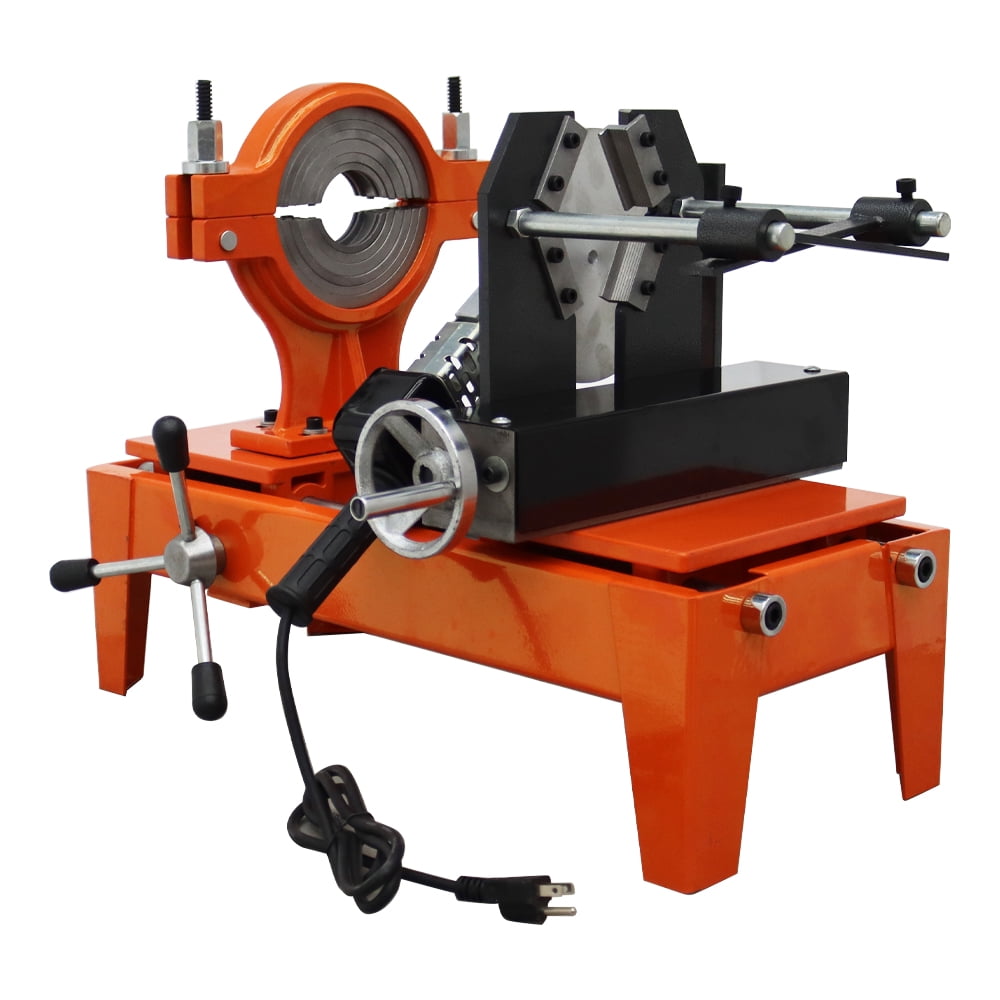

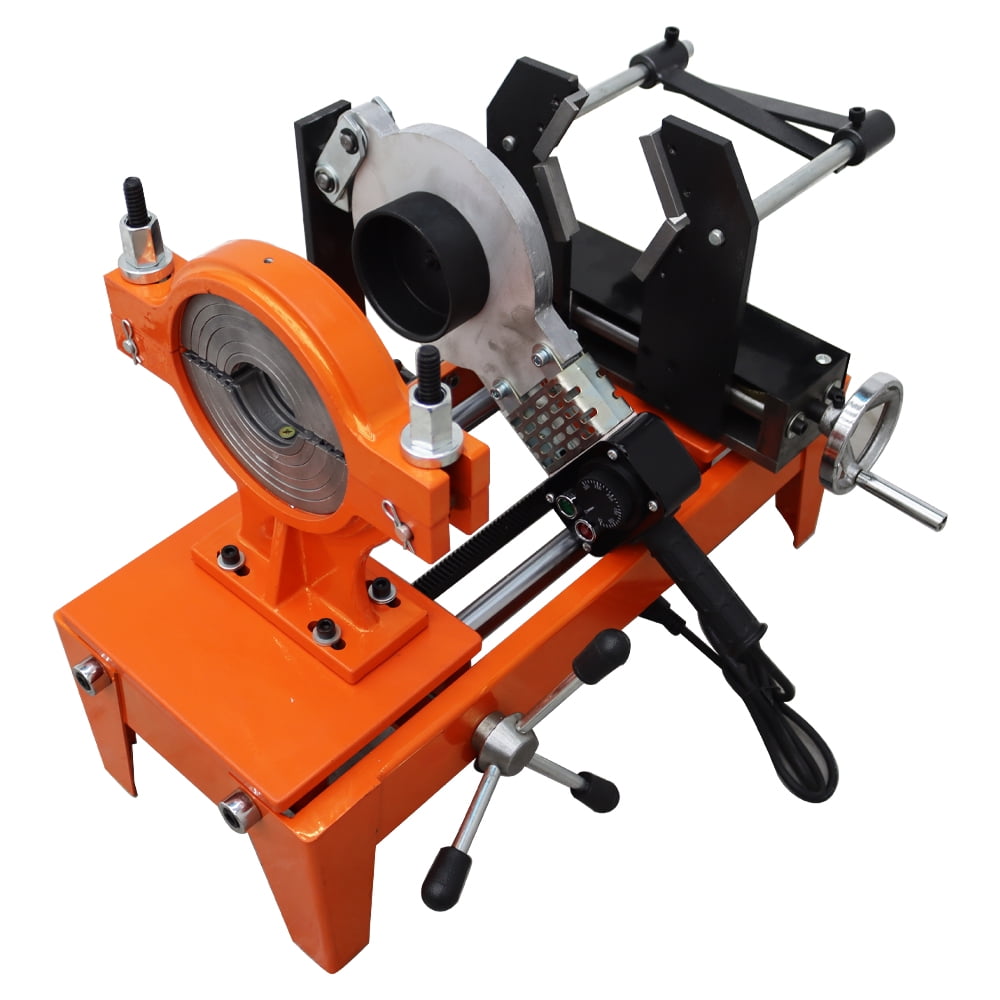

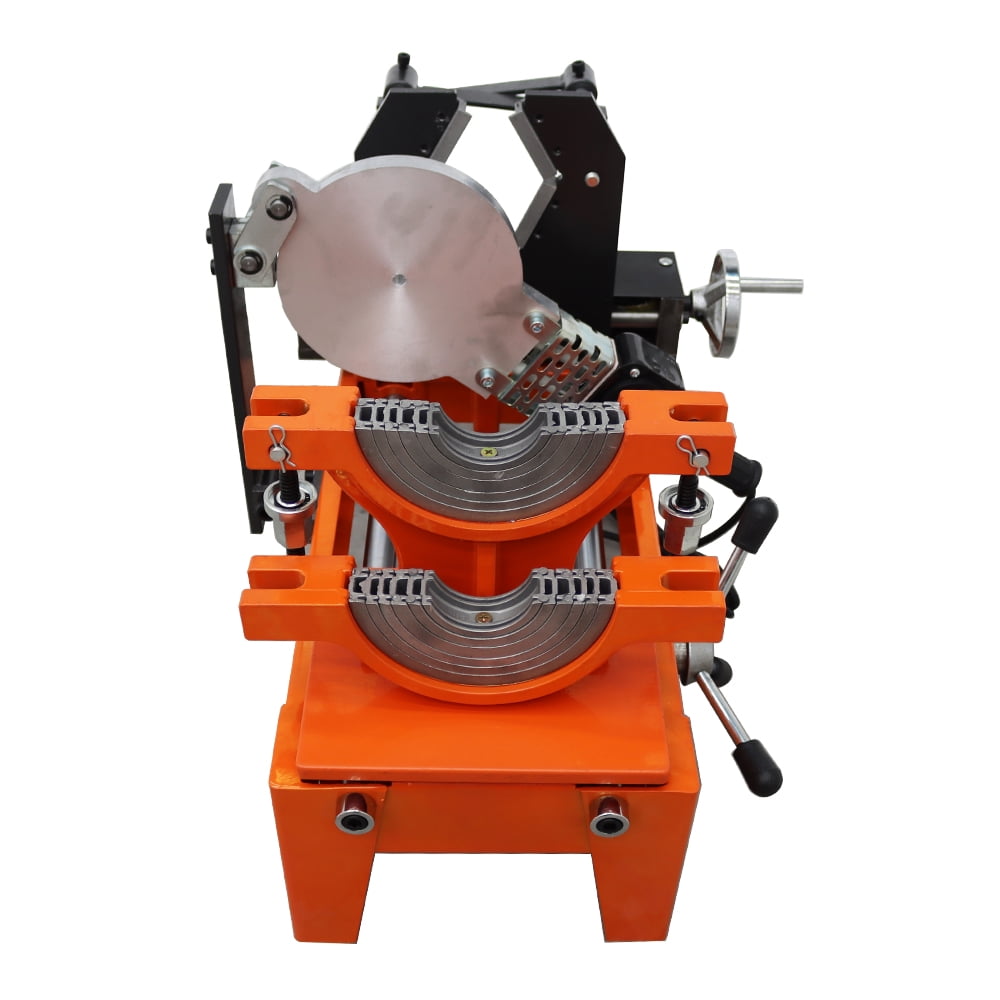

Techtongda Pipe Fusion Welder Pipe Welding Machine Pipe Soldering Iron Plastic Hot Melt Tool

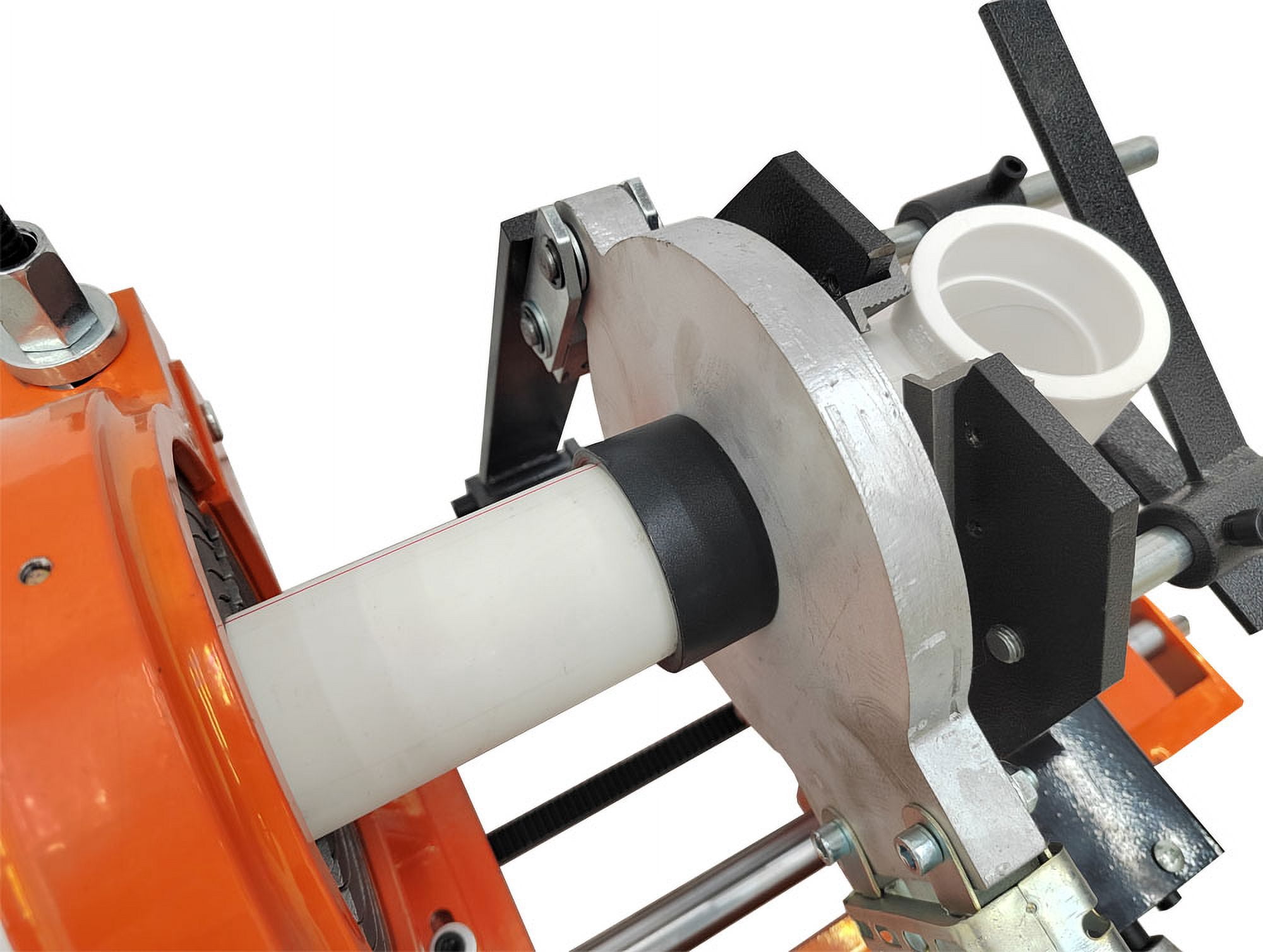

Description：<br> This product is suitable for hot melt socket welding of thermoplastic pipe such as PPR/PE/PB.High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.<br> <br> Specifications:<br> Model No.： 2.48-6.29”(63-160MM)<br> Materials： Aluminum alloy casting, 45# steel<br> Welding level(Φ)： 63mm(2.48”)、75mm(2.48”)、90 mm (3.54”)、110 mm (4.33”)、160 mm (6.29”)<br> Docking deviation： ≤0.3mm<br> Power of Heater： 110V<br> Working temperature： 300℃<br> Temperature deviation： ±5℃<br> Environment temperature： -5℃-40℃<br> Time required to reach soldering temperature： &lt;20min<br> Materials can be welded： PE PPR PB PVDF<br> Weight： 117.7LB(53.5kg)<br> Package Size： 29.5*19.7*22.1"(75*50*56cm)<br> <br> Note:<br> 1. Fix the welding device and install the heating end. Place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and tighten it with an internal hexagonal wrench. Generally, the small one is at the front end and the large one is at the rear end.<br> 2. Turn on the power and pay attention to the changes in the indicator light until the welding machine enters the working temperature control state before starting operation.<br> 3. Push vertically cut pipes and fittings into the fusion splicer die without rotation, and operate as required. After reaching the heating time, immediately remove the pipe and fittings from the mold head and quickly and evenly insert them into the required depth without rotation, forming a uniform flange at the joint.<br> <br> On the Eccentricity Problem<br> 1. If the top and bottom are not aligned, the pipe needs to be raised to the same level as the fixture.<br> 2. If the left and right are eccentric, the screws on the pipe clamp can be loosened and the position can be adjusted according to actual needs.<br> <br> Item included（145035）:<br> Techtongda Pipe Welding Machine Pipe Soldering Iron Plastic Hot Melt Tool 110V

• Accurate temperature control, high safety index, and strong environmental adaptability.

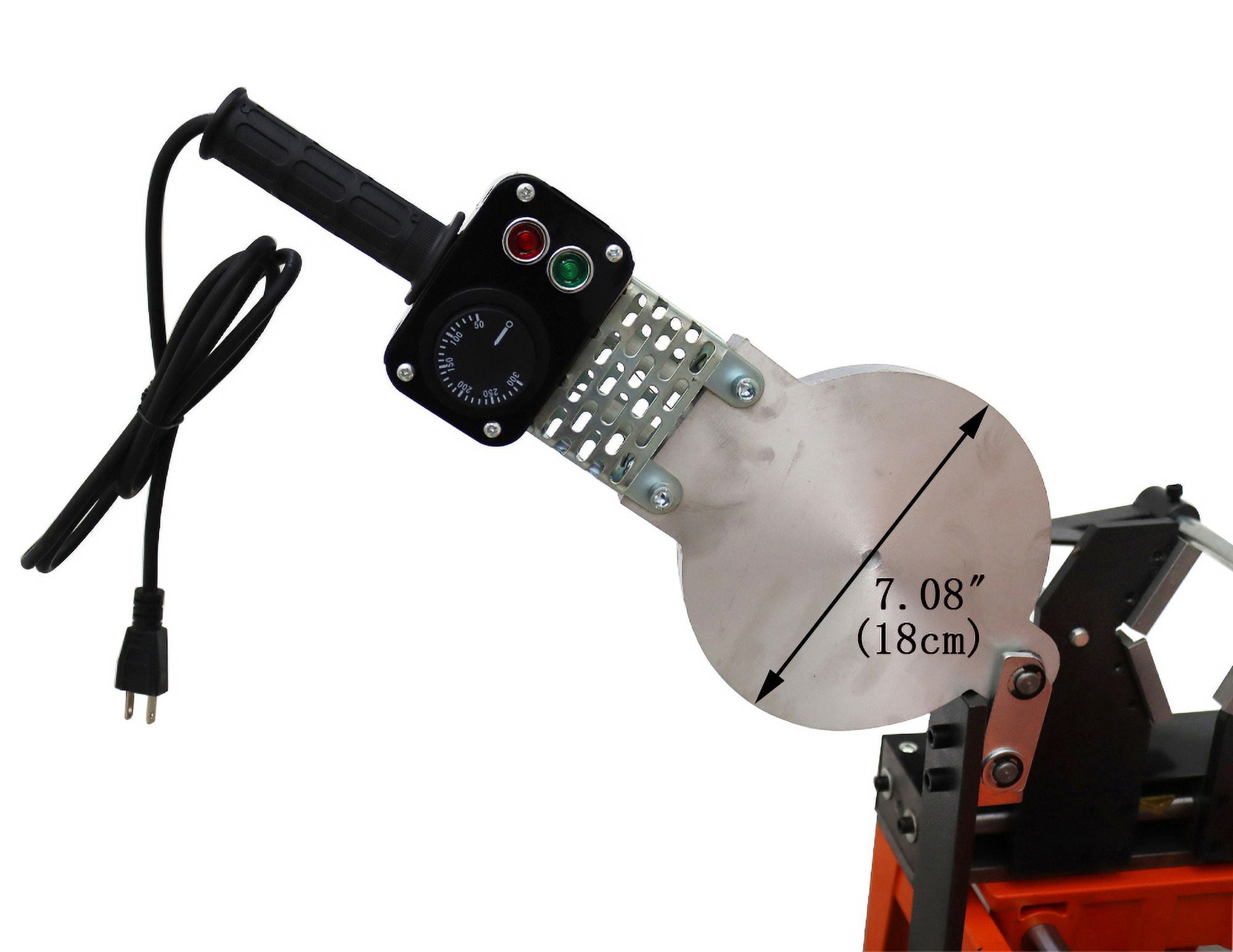

• The heat transfer plate is made of aluminum alloy, with high thermal conductivity and strong antioxidant energy.
• The structure is sturdy, convenient and fast, and not easy to leak.
• The hot melt mold head adopts non stick high-temperature coating technology, with a long service life.

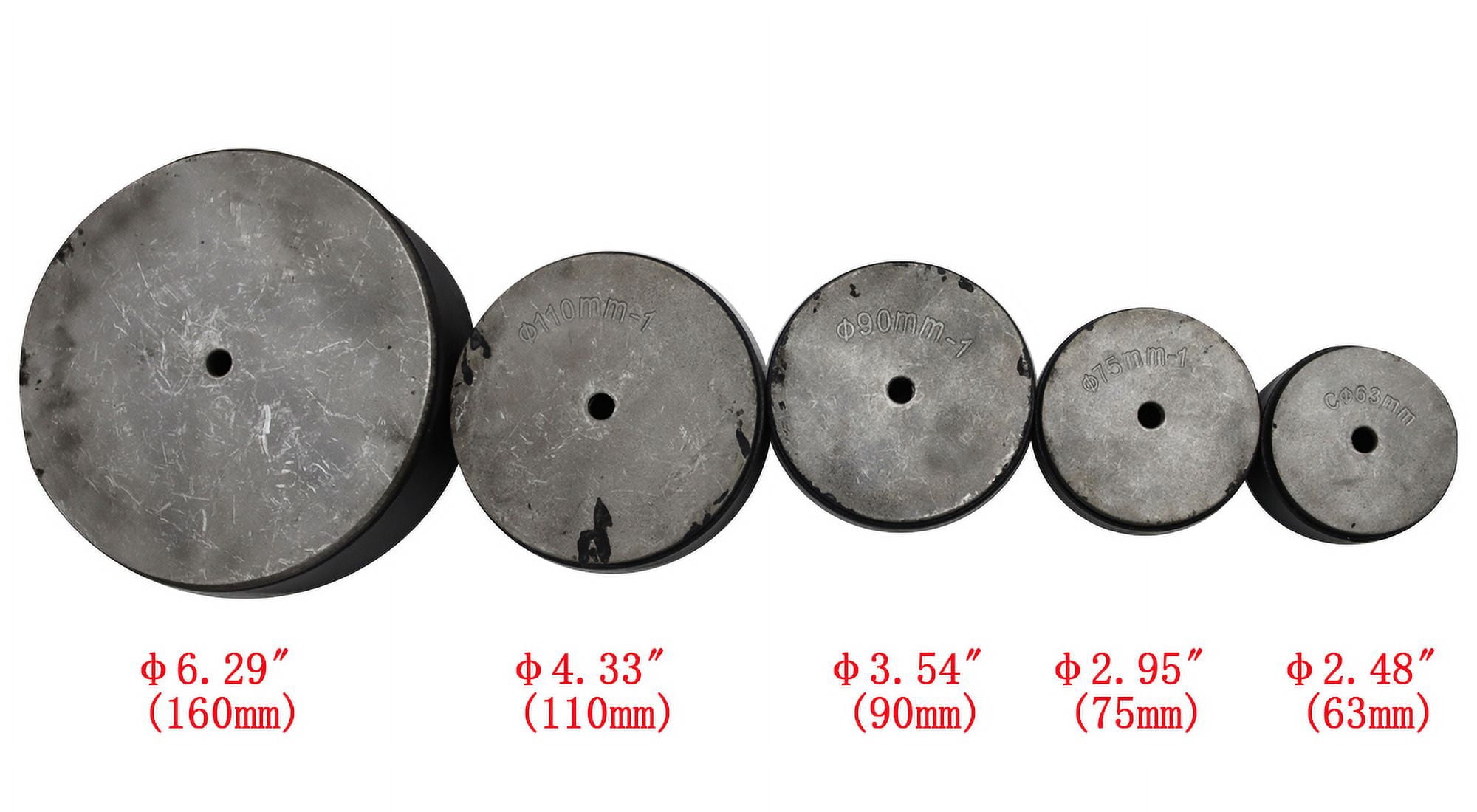

• Replacing the mold head can be used for connecting plastic pipes and fittings of various caliber sizes (specifications: φ 63-160mm).
